Hydraulic gantry systems

Hydraulic gantry systems

The Company has unique hydraulic gantry system due to which our personnel can lift and move the large-sized and heavyweight cargoes without using the cranes and in the enclosed spaces.

ABOUT US

Always being one-step ahead is the unspoken rule of the company “SM INDUSTRY”. It primarily concerns the brand-new equipment we use.

The Company operates a unique hydraulic gantry system, allowing personnel to lift and move large and heavy cargoes without cranes, even in confined spaces. The system can handle loads up to 1100 tons, ensuring maximum smoothness and precision.

No jerks or unstable fixation — only maximum reliability, safety, and speed. Our gantry system enables unloading at least 300 tons of cargo from a truck train within just a few hours.

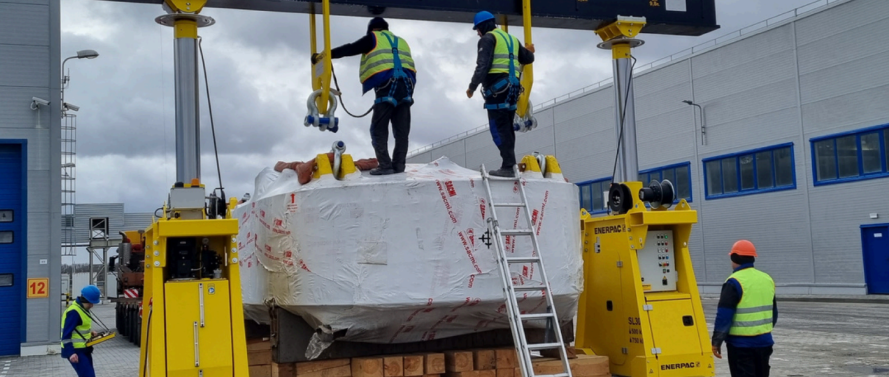

https://sm-industry.eu/wp-content/uploads/2025/05/img-1-eq.png

INDUSTRY APPLICATIONS

Universal Portal Crane Solutions

Our portal crane systems excel across a wide range of heavy-lifting tasks—handling turbines and generators, transformers, pressing and molding machines, printing equipment, bridge spans, storage tanks and more. Built for maximum safety, precision and uptime, they adapt seamlessly to any industrial environment.

Turbines, generators
Transformers
Pressing machines
Automatic molding machines
Turbines, generators
Bridges, spans
Printing Equipment
Tanks, columns

SERVICES

Safe and Precise Handling of Heavy Equipment

We provide professional reloading, rolling, installation, and dismantling of heavyweight equipment. Our experienced team ensures maximum safety, precision, and efficiency — from rail transporters to final foundation placement.

[ 01 ]
Reloading Heavy Cargo from Rail Transporters

Safe and efficient transfer of heavyweight cargoes from rail transporters to road transport vehicles, ensuring smooth logistics without delays.
[ 02 ]
Installation and Dismantling of Heavy Equipment

Safe and efficient transfer of heavyweight cargoes from rail transporters to road transport vehicles, ensuring smooth logistics without delays.
[ 03 ]
Rolling Heavy Equipment

Safe and efficient transfer of heavyweight cargoes from rail transporters to road transport vehicles, ensuring smooth logistics without delays.
[ 04 ]
Installation of Equipment and Foundations

Safe and efficient transfer of heavyweight cargoes from rail transporters to road transport vehicles, ensuring smooth logistics without delays.

Key Advantages

Benefits of Hydraulic Gantries Over Truck Cranes

Hydraulic gantries offer superior flexibility, precision, and efficiency compared to truck cranes. They are ideal for operating in confined spaces, handling extremely heavy loads, and ensuring smooth, safe lifting with minimal setup time.

[ 01 ] LIFTING
- TRUCK CRANE

  In most cases, a 300-ton crane lifts maximum 150 tons.
- HYDRAULIC GANTRY SYSTEM

  300-ton hydraulic gantry system always lifts 300 tons.
[ 02 ] SPACE FOR CRANE DEPLOYMENT
- TRUCK CRANE

  The crane required 16 meters in the side and 6-10 meters on the top.
- HYDRAULIC GANTRY SYSTEM

  The hydraulic gantry requires 1,5 meters on the right and on the left and 1 meter on the top.
[ 03 ] REDISLOCATION
- TRUCK CRANE

  Oversize crane

  7-8 vehicles in ballast
- TRUCK CRANE

  All hydraulic gantry’s equipment can be transferred by one truck.

Lifting height 2 - 12 meters
Capacity for 4 points amounts 110 - 1178 tons

Lift System 215A/430A Capacity: 220 tons
Lift System 215A/430A Capacity: 220 tons
Lift System 215A/430A Capacity: 220 tons
Lift System 24A/48 Capacity: 720 tons

Benefits

Compact Setup

Minimum area for hydraulic gantry installation. The hydraulic gantry requires only 1.5 meter on each side from the cargo.
Indoor Use

Operation in the enclosed spaces. Due to the dimensions of the hydraulic gantry’s elements, operations in the enclosed spaces are possible.
Smooth Operation

The hydraulic cylinders get started extremely smoothly without even a slight jerk that is especially important for lifting the loads from the ground and for moving the loads with a shifted center of gravity.
No Traverse

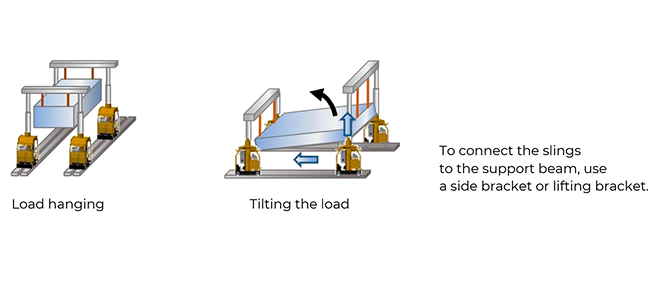

Operation without a traverse. Due to the independent four-point slinging, the load is securely fixed and no any traverse are required.
Fast Unloading

Speed of operation. The hydraulic gantry system allows unloading minimum 300 tons of cargo from the truck train within the count hours.
Easy Transport

Universal mobilization. One or two trucks can transport the hydraulic gantry system, which simplifies the process of mobilization.
